How to Install Rubber Flooring for a Weight Room

A barbell does not care whether your floor was installed carefully. The first dropped bumper plate will find every weak seam, soft spot, and unprotected edge. Knowing how to install rubber flooring correctly gives your weight room a stable, professional base that protects both the training surface and the structure underneath it.

Rubber flooring is not difficult to install, but it is unforgiving of shortcuts. A clean layout, a flat subfloor, and the right installation method matter more than rushing to get the room covered. The best approach depends on the flooring format, the subfloor, and whether you need the space to stay flexible over time.

Choose the Right Rubber Flooring Format First

Before cutting a single tile or rolling out a mat, decide whether the room needs a permanent floor or a modular one. That choice drives the installation process.

Interlocking rubber tiles are built for adaptability. They install without full-spread adhesive, can be lifted for cleaning or reconfiguration, and work well in home gyms, garage gyms, school weight rooms, and facilities that may change their equipment layout. PuzzleLock-style flooring creates a broad protective surface while allowing individual sections to be replaced if one is damaged.

Rubber rolls deliver a cleaner, lower-seam appearance across large rooms. They are a strong fit for commercial facilities and dedicated training areas where the layout will remain in place. Roll flooring is heavier to handle and usually benefits from adhesive, especially where foot traffic, sled work, and loaded carries could cause movement.

Individual rubber mats are practical for small zones, but they are not always the best answer for an entire lifting room. Their beveled edges can create transition points, and gaps may open as mats shift under repeated use. For a defined Olympic lifting station, a purpose-built platform provides a more controlled landing area and a clear visual boundary for athletes.

Measure the Room and Plan the Layout

Measure the length and width of the room at several points, not just once. Concrete walls, garage foundations, and older rooms are rarely perfectly square. Use the smallest measurements when ordering material, then add enough extra flooring for perimeter cuts, waste, and a few future repairs. A 5 to 10 percent overage is usually sensible, with more allowance for angled rooms or installations with multiple obstacles.

Plan where seams will land before material enters the room. Keep seams away from the primary lifting area whenever possible. A seam directly under the feet of a lifter or beneath the landing zone of bumper plates will take more abuse than a seam near a wall.

For tiles, start from the most visible straight wall or establish a center line if the room needs a balanced layout. For rolls, run the material in the direction that minimizes seams. In a long, narrow room, that generally means running rolls lengthwise.

Do not assume the walls are your only reference. Snap a chalk line and work from it. A straight first row keeps a small alignment error from becoming a major problem on the opposite side of the room.

Prepare the Subfloor Before Installing Rubber Flooring

The subfloor determines whether your finished floor sits flat, stays put, and performs under load. Rubber flooring can cover cosmetic flaws, but it cannot fix structural problems underneath.

Concrete is the most common base in garages and commercial facilities. It must be clean, dry, and reasonably level. Remove dust, paint flakes, old adhesive, oil, and loose debris. Grease and oil are especially problematic because they can prevent adhesive from bonding and can migrate through the flooring over time.

Check the slab for cracks, low spots, and raised areas. Small hairline cracks are often manageable, but larger cracks or uneven sections should be repaired before installation. Use a straightedge to identify high and low spots. If a loaded rack or lifting platform will sit over an uneven area, the problem will become more obvious once equipment is installed.

Moisture deserves attention, particularly in basements and on ground-level slabs. Rubber is water-resistant, but trapped moisture can lead to odor, mold concerns, adhesive failure, or staining beneath the floor. If the concrete shows dampness, has a history of water intrusion, or sits below grade, test it and address the source before covering it.

Wood subfloors must also be solid and flat. Secure loose panels, countersink protruding fasteners, and repair soft spots. Rubber can reduce impact and noise, but it cannot make a weak wood floor suitable for repeated heavy drops. Verify the structure can support the equipment, athletes, and dynamic loading planned for the room.

Let the Flooring Acclimate

Bring the rubber flooring into the installation space and let it acclimate for at least 24 to 48 hours. Keep the room near its normal operating temperature during this period. Rubber expands and contracts with temperature changes, and installing cold material in a warm room can create buckling or tight seams later.

Unroll roll flooring or lay tiles flat so the material can relax. Heavy rolls may retain a curl from shipping. Giving them time to settle makes cutting, seaming, and final placement much more accurate.

This step matters most in garages and other spaces with major seasonal temperature swings. If the room will be unheated in winter or hot in summer, plan the installation in moderate conditions and leave the expansion space recommended by the flooring manufacturer at perimeter walls.

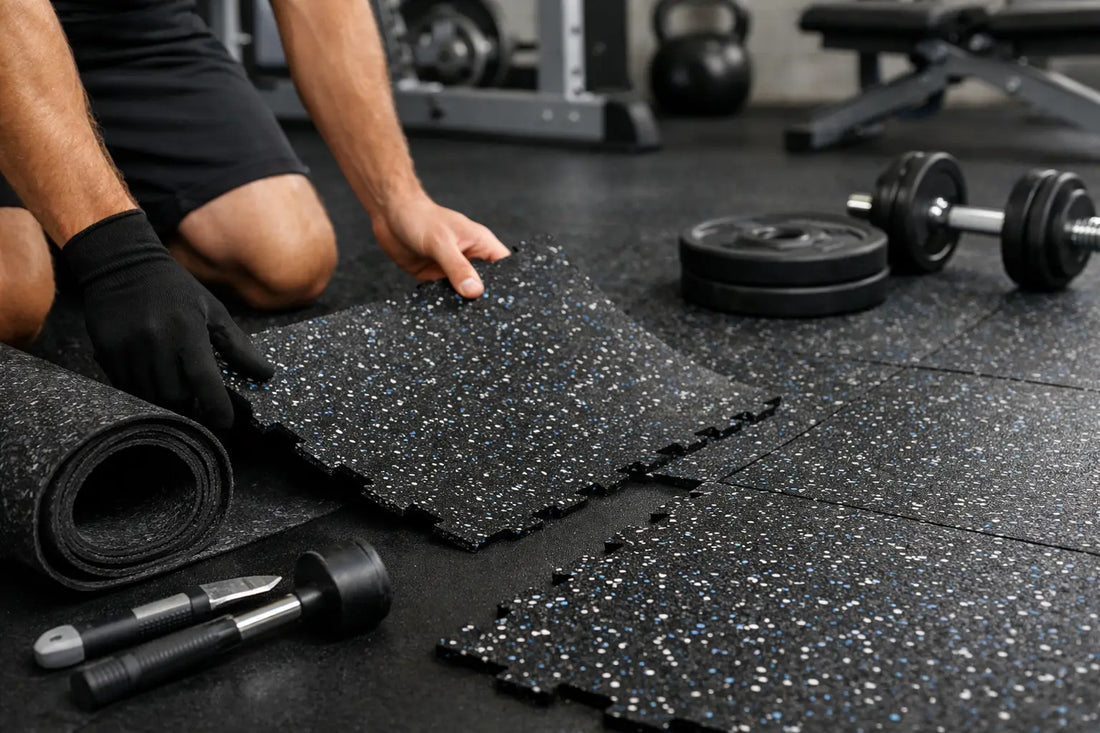

How to Install Rubber Flooring With Interlocking Tiles

Start with a dry layout. Place the first row along your reference line, connect the tile edges firmly, and work across the room without forcing the joints. Interlocking edges should fit tightly, but aggressive pulling can stretch rubber and leave the finished floor looking uneven.

As you reach walls, columns, door frames, or rack footings, mark cuts from the back side of the tile. Use a sharp utility knife, a straightedge, and several light passes rather than trying to force one deep cut. A fresh blade produces cleaner edges and reduces tearing.

Leave a small expansion gap at fixed walls unless the product instructions specify otherwise. Baseboards, wall trim, or rubber transition strips can cover that gap while allowing the floor to move naturally. Do not trap the entire installation tightly between walls.

Once the field is complete, walk it carefully. Look for raised joints, loose edges, and areas where the tiles do not sit flat. Correct those issues before equipment goes in. A heavy power rack can hold a problem in place temporarily, but it will not solve it.

Installing Rubber Rolls and Managing Seams

Roll flooring is easier with two people. Position each roll according to the dry layout, unroll it slowly, and allow it to relax. Align factory edges together whenever possible. They are cleaner and more consistent than site-cut edges.

For a tight seam, overlap adjacent rolls slightly, then use a double-cut method. Cut through both layers with a sharp blade and straightedge, remove the trimmed strips, and bring the edges together. This produces a closer joint than trying to measure two separate cuts.

If the flooring will be glued down, fold back one half of the roll without shifting the other half. Apply the approved adhesive at the required spread rate, allow the recommended open time, then roll the material back into place. Repeat on the second half. Do not use more adhesive than specified. Excess adhesive can create ridges, seep through seams, and complicate future repairs.

After placement, use a heavy flooring roller to press the rubber into the adhesive and remove trapped air. Roll in multiple directions, paying close attention to seams and edges. If the floor is loose-laid rather than adhered, heavy equipment and perimeter containment may be enough in some low-movement applications, but busy commercial rooms generally benefit from a more secure installation.

Finish the Edges and Build the Lifting Area

A finished rubber floor needs clean transitions at doors, walls, and changes in elevation. Install transition strips where the rubber meets concrete, carpet, or another hard surface. This reduces trip hazards and protects exposed edges from peeling upward.

Then place racks, benches, storage, and platforms with the traffic pattern in mind. Leave enough clearance for athletes to load bars, change plates, and move safely around equipment. A floor can be durable and still feel poorly designed if lifters have to step over plates or squeeze between stations.

For Olympic lifting and high-volume barbell work, consider a dedicated platform over the rubber flooring. It creates a defined station, adds another layer of impact management, and prevents the entire room from becoming a landing zone. Infinity Performance's portable platform approach is particularly useful where a facility needs serious floor protection without committing to permanent construction.

Let the Floor Set Before Heavy Use

If adhesive was used, follow its cure-time requirements before moving heavy equipment or dropping loaded bars. The floor may feel secure underfoot well before the adhesive has reached full strength. Loading it too early can shift seams or leave permanent impressions.

Keep the surface clean after installation. Sweep grit and chalk regularly, wipe spills promptly, and avoid harsh solvents that can damage rubber or leave a slick residue. Rubber flooring is built for abuse, but simple maintenance keeps the room looking as serious as it performs.

A properly installed rubber floor should disappear into the work. Lifters notice the stable footing, the controlled landing surface, and the confidence to train hard without treating every rep like a threat to the building.
