Modular Weight Room Flooring Layout That Works

A barbell does not care whether the room is 200 square feet or 20,000. When plates hit the floor, the force goes somewhere. A smart modular weight room flooring layout gives that force a controlled landing zone while keeping the rest of the facility clean, usable, and ready to change as training demands change.

The goal is not to cover every inch with the heaviest material available. The goal is to put protection, traction, and visual structure exactly where athletes need them. That starts with separating the room by how it will actually be used.

Start With Training Zones, Not Flooring Pieces

Measure the room, mark doors, wall clearances, columns, storage, and traffic routes before ordering a single tile or platform. Then identify where the highest-impact work will happen. Olympic lifting, deadlifting, rack work, sled movement, dumbbell training, and general circulation all create different demands.

A common mistake is building the layout around equipment dimensions alone. A squat rack may have a compact footprint, but the usable training zone needs room for an athlete to step back, load plates, spot safely, and move a bar without clipping another station. The same goes for lifting platforms. The platform footprint is only part of the station. Account for approach space, plate storage, and a clear path around the lifter.

For most serious weight rooms, the layout works best when high-impact stations sit together rather than being scattered across the floor. Concentrating lifting stations simplifies supervision, protects the subfloor where it matters most, and gives the room a more deliberate appearance. It also prevents a dropped barbell from becoming everyone else's problem.

Build the Modular Weight Room Flooring Layout From the Center Out

Once the lifting area is defined, place the most demanding stations first. These are typically Olympic lifting platforms, deadlift areas, and rack positions used for heavy barbell work. Everything else should work around those anchors.

A portable platform is especially useful here because it creates a finished lifting station without requiring permanent construction. The G-Max Titan Olympic Lifting Platform is built for this exact role: a defined surface with the visual finish of real wood and the durability of rubber, in a format that can move when the room needs to move. That matters in garage gyms, school facilities, private training spaces, and commercial rooms that may need to expand, reorganize, or relocate equipment later.

Set platforms in a consistent orientation whenever possible. Parallel stations create cleaner sightlines and make a room feel organized even when it is busy. In narrower rooms, align stations so athletes are not walking directly behind active lifters. If the space forces a compromise, prioritize the bar path and exit route over perfect visual symmetry.

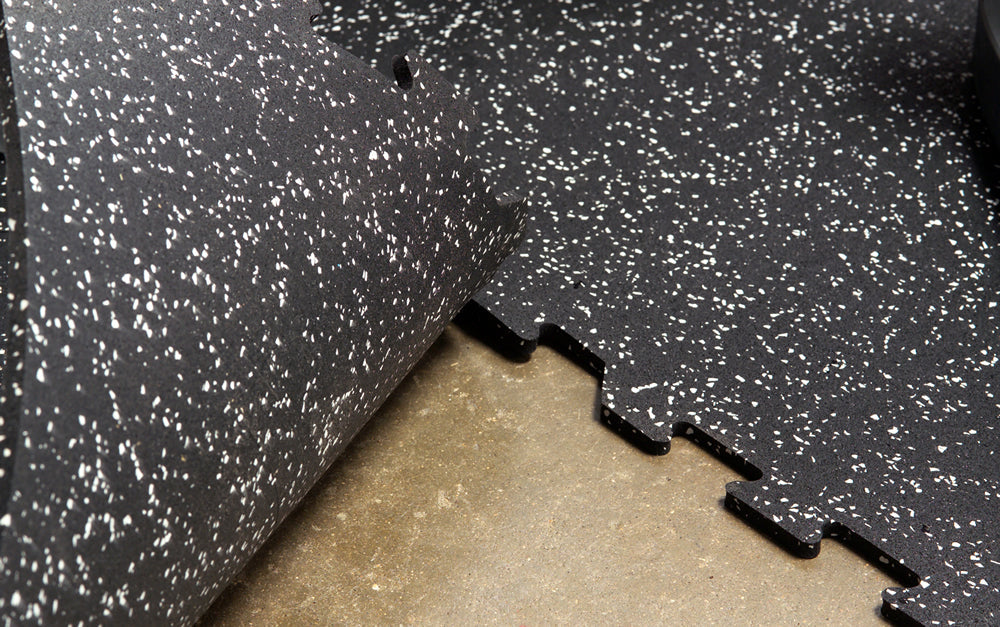

From there, extend modular rubber flooring into adjacent rack, dumbbell, and accessory areas. Puzzle-style flooring is a practical choice for these broader zones because it creates a protective surface that can be expanded, replaced, or reconfigured without tearing out an entire floor. The key is to use the seams intentionally. Keep them away from the center of a primary lifting stance when possible, and make sure tiles fit tightly so edges do not separate under traffic.

Match the Surface to the Work

Not every square foot needs the same flooring solution. Treating the room as one uniform surface can waste budget in low-impact areas while still leaving the heaviest-use zones underbuilt.

Olympic lifting stations need a purpose-built platform that gives athletes a clear visual target and a stable place to set up. The center should support consistent foot placement and a professional look, while rubber landing areas handle bumper plates and repeated drops. A dedicated platform also makes it obvious where high-impact training belongs, which helps protect the surrounding floor.

Rack bays and deadlift positions need durable rubber coverage with dependable traction. These spaces see plate loading, dropped dumbbells, rack adjustments, and concentrated foot traffic. A modular rubber system makes sense when the room may change, but thickness and surface quality still matter. Cheap, soft tiles can compress, shift, or develop gaps under loaded equipment. A professional training floor needs to stay put.

General movement lanes can use the same rubber system or a simpler protective surface, depending on the facility. The trade-off is straightforward: more rubber coverage increases protection and creates a unified appearance, but it also raises material cost. In a home gym, it may make more sense to protect the lifting, rack, and dumbbell zones first, then leave low-impact storage or entry areas uncovered.

Plan for Movement Between Stations

A good layout controls traffic without turning the room into a maze. Athletes need direct routes to plate trees, dumbbell racks, water, exits, and storage. Coaches need to move between stations without crossing directly through a barbell's working area.

Leave clear circulation lanes around the perimeter and between major training zones. In a one- or two-platform setup, that may simply mean preserving an open side route rather than placing storage behind the platform. In a larger facility, it means establishing a consistent flow from warm-up areas to racks, platforms, and accessory equipment.

Plate storage deserves special attention. Put it close enough to platforms and racks that athletes do not carry 45-pound plates across the room, but not so close that it crowds the lifting station. A few extra steps are better than a plate tree blocking the path of a barbell or a coach.

Also consider the room's entry point. If members enter directly into the lifting area, use flooring boundaries to establish where traffic belongs. Modular flooring can visually frame zones without walls or signs. A clean edge between the central lifting area and the circulation path tells people where to walk before anyone has to say it.

Use Edges and Seams as Design Tools

Modular flooring has a practical advantage over permanent flooring: it can adapt. That advantage disappears if the edges are left exposed, uneven, or poorly supported. Plan finished borders where the flooring meets concrete, carpet, or another surface. Transitions should feel deliberate underfoot and should not create a toe-catching lip.

For puzzle-style rubber, start with a square reference line rather than assuming every wall is perfectly straight. Older garages and commercial spaces often are not. If the first row follows a crooked wall, the entire floor can drift out of alignment and leave awkward cuts at the opposite end.

Keep seams aligned in a disciplined pattern, particularly in visible areas. Random tile orientation may technically cover the floor, but it can make a premium training space look temporary. A straight, consistent layout reinforces the same standard as quality racks, calibrated plates, and well-maintained equipment.

When a room includes platforms, use their edges to guide the surrounding tile layout. A clean flooring field that terminates neatly at each platform makes the whole room look built rather than assembled. That visual order matters to athletes, clients, and decision-makers evaluating a facility.

Design for the Room You Will Need Next Year

The strongest case for a modular approach is not just easier installation. It is the ability to change the room without starting over. A school may add lifting groups. A private facility may replace cardio equipment with more racks. A garage gym may move after a lease ends. Fixed construction makes every change expensive. Portable platforms and modular rubber allow the floor plan to follow the program.

That does not mean every layout should be temporary. If a facility has a permanent high-volume lifting zone, build it with enough capacity and clearances to serve that purpose for years. But use modular components around the fixed needs. Keep a few tiles available for repairs, expansions, or future equipment moves. A damaged section should be replaceable without disrupting the entire room.

Before finalizing the plan, walk it as an athlete would. Carry an imaginary plate from storage to a platform. Step back from a loaded rack. Picture two people training at adjacent stations during a busy hour. If the routes feel crowded on paper, they will feel worse with bars, plates, and people in the room.

A well-built floor does more than protect concrete. It defines how the room performs. Set the heavy work on purpose-built stations, extend durable modular coverage where training expands, and leave the space ready for the next change instead of locking it into the last one.
